What Is A Cable Cleat?
What Is A Cable Cleat?
A cable cleat, often simply referred to as a cleat, is a device used in electrical installations to secure and support cables, preventing them from moving excessively or becoming damaged. These cleats are designed to maintain the spacing between cables and to restrain them during short circuits or faults, thereby ensuring the integrity of the electrical system.
What are Cable Cleats?
A cable cleat is essentially a clamp or fastening device made of various materials such as stainless steel, polymeric compounds, or other metal alloys. Its primary function is to provide mechanical support to electrical cables, holding them firmly in place along their route. Cable cleats come in various shapes and sizes, tailored to accommodate different cable diameters and configurations. They are typically installed at regular intervals along the length of the cable route, ensuring uniform support and protection.
The primary purpose of cable cleats is to maintain the integrity and safety of electrical installations. By securely fastening cables in position, they prevent excessive movement that can lead to abrasion, chafing, or damage to the cable insulation. This is particularly crucial in industrial environments or areas where there is a risk of mechanical impact or vibration, such as construction sites or offshore installations.
Moreover, cable cleats play a vital role in minimizing the risk of electrical faults, such as short circuits or phase-to-phase faults. During a fault condition, cables can experience significant forces due to electromagnetic forces or thermal expansion. Without proper restraint, these forces can cause cables to whip or move violently, potentially leading to catastrophic failures or injuries. Cable cleats effectively mitigate these risks by anchoring the cables securely, thereby preventing dangerous cable movements and maintaining the integrity of the electrical system.
In addition to safety considerations, cable cleats also contribute to the longevity and reliability of electrical installations. By ensuring that cables are properly supported and protected, cleats help prevent premature wear and damage, thereby extending the service life of the cables and reducing the need for costly repairs or replacements. This is particularly important in critical infrastructure or mission-critical applications where downtime or failures can have significant financial or operational consequences.
Role in Cable Management
Cable cleats play a crucial role in effective cable management within electrical installations. Cable management involves the organization, support, and protection of cables to ensure optimal performance and safety. Here’s how cable cleats contribute to this process:
Organization: Cable cleats help organize cables by maintaining spacing and alignment along their route. By securely fastening cables in place, cleats prevent them from sagging, tangling, or crossing over each other. This not only improves the aesthetics of the installation but also facilitates easier identification and access to individual cables for maintenance or troubleshooting purposes.
Support: Proper support is essential for cables to prevent excessive stress, strain, or sagging, which can lead to mechanical damage or performance degradation over time. Cable cleats provide reliable support by anchoring cables to structural elements such as cable trays, walls, or support brackets. This ensures that cables remain in their intended position and orientation, even under dynamic loads or environmental conditions such as wind, vibration, or seismic events.
Protection: Cable cleats offer protection against various hazards that can compromise the integrity of cables. They shield cables from mechanical damage caused by abrasion, impact, or crushing, which may occur due to nearby machinery, equipment, or human activities. Additionally, cleats help prevent damage from electromagnetic interference (EMI), chemical exposure, or extreme temperatures, thereby preserving the electrical performance and longevity of the cables.
Safety: Perhaps most importantly, cable cleats enhance safety within electrical installations by minimizing the risk of cable-related incidents or accidents. By securely restraining cables during fault conditions, cleats prevent dangerous cable movements, such as whipping or flailing, which could pose a threat to personnel, equipment, or nearby structures. This is especially critical in high-voltage or high-power applications where the consequences of a cable failure can be severe.
Therefore, cable cleats are integral to effective cable management by organizing, supporting, protecting, and ensuring the safety of electrical cables within installations. Their role extends beyond mere mechanical fastening, encompassing various aspects of installation integrity, performance, and risk mitigation. As such, proper selection, installation, and maintenance of cable cleats are essential considerations for ensuring the reliability and safety of electrical systems.

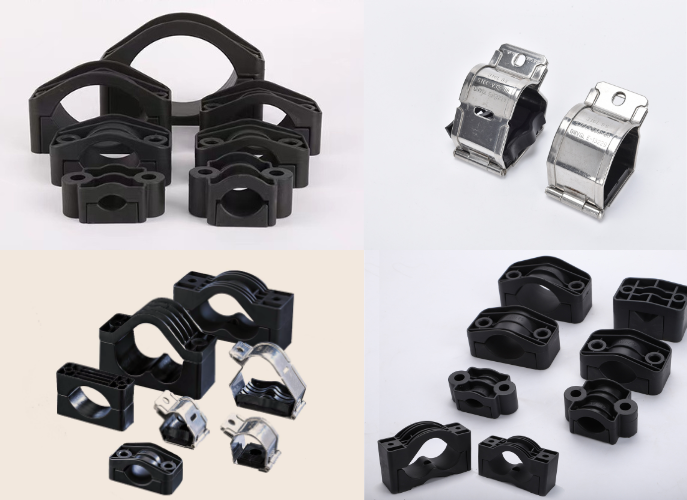

Types of Cables Cleats
When it comes to cable cleats, various types are available, each designed to accommodate different cable sizes, configurations, and installation requirements. Here are some common types of cable cleats:
1. Single Cable Cleats: Single cable cleats are the most basic type, designed to secure individual cables. They typically consist of a clamp or saddle that holds a single cable in place. Single cable cleats are suitable for installations where cables are spaced apart or when only one cable needs to be supported.
2. Multicore Cable Cleats: Multicore cable cleats are designed to secure multiple cables in parallel, commonly found in installations with bundled cables or multicore cables. These cleats feature multiple clamps or compartments to accommodate the bundled cables while ensuring proper spacing and support between them.
3. Trefoil Cable Cleats: Trefoil cable cleats, also known as triangular cleats, are specifically designed for three-phase cables arranged in a trefoil formation. They are engineered to maintain the optimal spacing and configuration of the three cables, ensuring balanced support and preventing the formation of hotspots during operation.
4. Heavy-Duty Cable Cleats: Heavy-duty cable cleats are robust cleats designed to withstand higher mechanical loads or extreme environmental conditions. They are often used in industrial or outdoor applications where cables are exposed to heavy vibration, impact, or harsh weather conditions.
5. Fire-Resistant Cable Cleats: Fire-resistant cable cleats are specially engineered to maintain cable integrity and support even in the event of a fire. These cleats are constructed from materials with high fire resistance properties, ensuring that cables remain securely fastened and do not contribute to the spread of fire or smoke.
6. Adjustable Cable Cleats: Adjustable cable cleats offer flexibility in accommodating cables of varying sizes or diameters. They feature adjustable mechanisms or modular designs that allow for easy customization and adaptation to different cable configurations, reducing the need for multiple cleat sizes.
7. Stainless Steel Cable Cleats: Stainless steel cable cleats are corrosion-resistant cleats suitable for harsh or corrosive environments such as marine or chemical plants. They provide durable and long-lasting support for cables exposed to moisture, saltwater, or corrosive chemicals.
8. Polymeric Cable Cleats: Polymeric cable cleats are made from high-strength polymers or composite materials, offering lightweight yet robust support for cables. These cleats are non-metallic and non-conductive, making them ideal for installations where electrical conductivity or magnetic interference must be minimized.
Each type of cable cleat offers unique features and benefits, allowing for tailored solutions to meet the specific requirements of different applications and environments. Proper selection and installation of cable cleats are essential to ensure the reliability, safety, and longevity of electrical installations.
Components of Cable Cleats
Cable cleats are composed of various materials and constructed in different designs to accommodate a wide range of cable sizes and configurations. The components and construction of cable cleats play a crucial role in their performance, durability, and suitability for different applications.
Material Composition
One of the key considerations in the construction of cable cleats is the choice of materials. Cable cleats are commonly made from metals such as stainless steel or aluminum, as well as polymeric materials such as high-strength plastics or composite materials.
Stainless Steel: Stainless steel cable cleats offer excellent strength, corrosion resistance, and durability, making them suitable for harsh environments or outdoor installations exposed to moisture, saltwater, or chemical substances. They provide robust support for cables and are often used in industrial, marine, or offshore applications where reliability and longevity are paramount.
Polymeric Materials: Cable cleats made from polymers or composite materials offer advantages such as lightweight, non-conductivity, and resistance to corrosion and chemical substances. These non-metallic cleats are particularly suitable for installations where electrical conductivity must be minimized, or where weight restrictions or cost considerations are important factors.
The choice of material depends on various factors such as the environmental conditions, mechanical loads, and electrical properties of the installation, as well as regulatory requirements and cost considerations.
Design Variations
Cable cleats are available in a variety of designs, each tailored to specific installation requirements and cable configurations. Common design variations include:
Clamp: Clamp-style cable cleats feature a clamp or bracket that secures the cable in place, providing reliable support and restraint. Clamp cleats are versatile and can accommodate a wide range of cable sizes and configurations, making them suitable for various applications.
Hook: Hook-style cable cleats feature a hook or loop design that wraps around the cable, providing secure support without the need for additional fasteners. Hook cleats are quick and easy to install and are often used in applications where frequent cable routing or maintenance is required.
Saddle: Saddle-style cable cleats consist of a saddle-shaped component that cradles the cable, providing support along its length. Saddle cleats distribute the mechanical loads evenly across the cable, reducing the risk of damage or deformation, and are commonly used in horizontal or vertical cable runs.
The choice of design depends on factors such as the cable size and type, installation method, mechanical loads, and aesthetic preferences.
Features for Different Cable Sizes and Configurations
Cable cleats are designed to accommodate different cable sizes, configurations, and installation requirements. They may feature adjustable mechanisms, modular designs, or multiple compartments to accommodate various cable diameters and arrangements. Some cleats are specifically engineered for trefoil formation or multicore cables, ensuring proper spacing, alignment, and support. Additionally, cable cleats may incorporate features such as cushioning inserts, strain relief elements, or fire-resistant coatings to enhance performance and safety in specific applications.
Proper selection of cable cleats based on the size, type, and arrangement of cables is essential to ensure optimal support, protection, and performance within electrical installations. Cleats should be installed according to manufacturer recommendations and industry standards to maximize their effectiveness and reliability.
Applications of Cable Cleats
Cable cleats find extensive use across various industries and environments where electrical cables need to be securely supported and protected. Here are some key application areas:
1. Industrial Settings
In industrial settings such as manufacturing plants, refineries, or chemical processing facilities, cable cleats play a critical role in ensuring the reliability and safety of electrical installations. Industrial environments often involve high mechanical loads, vibration, and exposure to corrosive substances, making proper cable management essential. Cable cleats provide robust support and protection for cables, preventing damage from mechanical impact, abrasion, or chemical exposure. They are commonly used in motor control centers, switchgear cabinets, cable trays, and cable ladder systems to maintain the integrity of power distribution systems and ensure uninterrupted operation of industrial processes.
2. Power Distribution Networks
Cable cleats are integral components of power distribution networks, including substations, transformer stations, and distribution lines. In these applications, cable cleats are used to secure high-voltage cables, overhead lines, or underground cables, ensuring their stability and reliability under various operating conditions. Cable cleats help mitigate the risk of cable movement or damage caused by wind, ice, or other environmental factors, thereby minimizing the potential for electrical faults or service interruptions. They are essential for maintaining the safety and integrity of power transmission and distribution systems, particularly in critical infrastructure such as hospitals, data centers, or utility networks.
3. Construction Sites
Construction sites present unique challenges for cable management due to the temporary nature of installations, frequent movement of equipment, and exposure to harsh environmental conditions. Cable cleats are commonly used in construction projects to secure temporary power cables, lighting cables, or communication cables, ensuring their stability and protection during construction activities. Cleats help prevent tripping hazards, cable damage, or accidental disconnection, enhancing safety and efficiency on the job site. Additionally, cable cleats with weather-resistant or fire-resistant properties are often specified for construction sites to withstand exposure to rain, mud, dust, or potential fire hazards.
4. Offshore and Marine Environments
Offshore platforms, marine vessels, and port facilities pose unique challenges for cable management due to the harsh marine environment, including saltwater exposure, high humidity, and mechanical vibrations. Cable cleats designed for offshore and marine applications are constructed from corrosion-resistant materials such as stainless steel or marine-grade polymers to withstand the corrosive effects of seawater and environmental elements. These cleats provide secure anchoring and support for power cables, control cables, or communication cables, ensuring their reliability and safety in offshore drilling rigs, ships, or port infrastructure. Additionally, cable cleats with fire-resistant properties are essential for offshore installations to comply with safety regulations and mitigate the risk of fire incidents in hazardous environments.
Thus, cable cleats play a vital role in a wide range of application areas, including industrial settings, power distribution networks, construction sites, and offshore/marine environments, where they contribute to the reliability, safety, and efficiency of electrical installations in diverse operating conditions.
Standards and Regulations
Adherence to international standards and compliance requirements is essential in the design, selection, and installation of cable cleats to ensure the safety, reliability, and performance of electrical installations. Here’s an overview of the relevant standards and compliance requirements:
1. International Standards
IEC Standards: The International Electrotechnical Commission (IEC) publishes standards related to cable cleats under various categories, including cable management systems, cable accessories, and electrical installations. Some key IEC standards relevant to cable cleats include:
IEC 61914: “Cable cleats for electrical installations”: This standard specifies requirements and tests for cable cleats used for securing and supporting cables in electrical installations. It covers aspects such as mechanical strength, environmental resistance, and fire performance.
IEC 61439: “Low-voltage switchgear and controlgear assemblies”: While not specific to cable cleats, this standard outlines requirements for the design, construction, and testing of low-voltage switchgear and controlgear assemblies, including cable management systems.
IEEE Standards: The Institute of Electrical and Electronics Engineers (IEEE) publishes standards related to electrical installations, including cable management systems and cable accessories. Relevant IEEE standards may include:
IEEE 383: “Standard for Type Test of Class 1E Electrical Cables, Field Splices, and Connections for Nuclear Power Generating Stations”: This standard specifies type tests for cables used in nuclear power plants, including requirements for cable cleats and supports.
IEEE 1202: “Standard for Flame Propagation Testing of Wire & Cable”: While not specific to cable cleats, this standard outlines requirements for flame propagation testing of cables used in hazardous locations, which may include cable cleats.
2. Compliance Requirements
National Electrical Codes (NEC): In the United States, the National Electrical Code (NEC), published by the National Fire Protection Association (NFPA), provides requirements for electrical installations, including cable management systems and cable accessories. Compliance with NEC standards is mandatory in many jurisdictions, and it may include specific requirements for cable cleats, such as spacing, materials, and installation methods.
European Standards (EN): In Europe, cable cleats must comply with relevant European standards (EN) issued by the European Committee for Electrotechnical Standardization (CENELEC). These standards may include requirements for mechanical strength, fire performance, and environmental resistance, among others.
Industry-Specific Regulations: Certain industries, such as oil and gas, petrochemical, or marine, may have specific regulations or standards governing the design and installation of cable cleats. Compliance with industry-specific regulations is essential to ensure the safety and integrity of electrical installations in these sectors.
Local Building Codes: Local building codes and regulations may also include requirements for cable cleats and cable management systems. Compliance with local codes is necessary to obtain regulatory approval for electrical installations and ensure their safety and compliance with applicable standards.
Accordingly, compliance with international standards and regulatory requirements is essential to ensure the safety, reliability, and performance of cable cleats in electrical installations. Designers, engineers, and installers should carefully evaluate and adhere to relevant standards and regulations to ensure proper selection, installation, and maintenance of cable cleats.
Benefits of Cable Cleats
Cable cleats offer several advantages in electrical installations, contributing to the safety, reliability, and efficiency of cable management systems. Here are the key benefits:
1. Cable Protection
Prevention of Mechanical Damage: Cable cleats securely fasten cables in place, preventing excessive movement, vibration, or abrasion that can lead to mechanical damage. By maintaining proper spacing and alignment between cables, cleats reduce the risk of cable wear, insulation damage, or short circuits caused by friction or contact with adjacent surfaces.
Mitigation of Electromagnetic Forces: During short circuits or fault conditions, cables can experience significant electromagnetic forces that may cause them to whip or move violently, posing a risk of damage or injury. Cable cleats restrain cables and limit their movement, minimizing the impact of electromagnetic forces and reducing the risk of cable damage or failure.
Protection Against Environmental Hazards: Cable cleats provide a barrier against environmental hazards such as moisture, chemicals, or extreme temperatures, which can degrade cable insulation or compromise electrical performance. Cleats with weather-resistant or fire-resistant properties offer additional protection against the effects of harsh environmental conditions, ensuring the longevity and reliability of cable systems.
2. Durability and Reliability
Robust Construction: Cable cleats are typically constructed from durable materials such as stainless steel, aluminum, or high-strength polymers, ensuring long-term reliability and performance in various operating conditions. These materials offer resistance to corrosion, UV degradation, and mechanical stresses, enhancing the durability of cable cleats in harsh environments.
Mechanical Strength: Cable cleats are designed to withstand mechanical loads, vibrations, and impacts encountered in industrial, marine, or construction environments. They provide secure anchoring and support for cables, even under dynamic loads or seismic events, ensuring the stability and integrity of electrical installations over time.
Compliance with Standards: Many cable cleats comply with international standards and regulatory requirements governing cable management systems and electrical installations. Compliance with standards ensures that cleats meet specified performance criteria for mechanical strength, fire resistance, environmental resistance, and other factors, providing assurance of their durability and reliability in real-world applications.
3. Maintenance Advantages
Ease of Installation: Cable cleats are designed for easy installation, with simple mounting methods and adjustable features to accommodate different cable sizes and configurations. This reduces installation time and labor costs, contributing to overall project efficiency and cost-effectiveness.
Facilitation of Maintenance: Properly installed cable cleats facilitate maintenance and inspection of electrical installations by ensuring that cables are securely fastened and accessible for troubleshooting or repair. Cleats with quick-release or adjustable mechanisms allow for easy removal or repositioning of cables during maintenance activities, minimizing downtime and disruption to operations.
Long-Term Cost Savings: By protecting cables from damage and ensuring their reliable performance, cable cleats help reduce the need for costly repairs, replacements, or downtime associated with cable failures. Investing in high-quality cable cleats can yield long-term cost savings by extending the service life of cable systems and minimizing the risk of unplanned outages or accidents.
Installation and Maintenance
Proper installation and regular maintenance of cable cleats are essential for ensuring the effectiveness, reliability, and safety of electrical installations. Here are guidelines for installation and maintenance:
1. Proper Installation Procedures
Selection of Correct Cleats: Choose cable cleats that are suitable for the cable size, type, and configuration, considering factors such as mechanical strength, environmental resistance, and compliance with standards and regulations.
Positioning and Spacing: Install cable cleats at regular intervals along the length of the cable route, ensuring proper spacing and alignment between cleats. Follow manufacturer recommendations and industry standards for cleat spacing, taking into account factors such as cable diameter, mechanical loads, and environmental conditions.
Mounting Surfaces: Ensure that mounting surfaces are clean, flat, and free from any obstructions or contaminants that could interfere with the installation of cleats. Use appropriate mounting hardware such as screws, bolts, or clamps to secure cleats to structural elements such as cable trays, walls, or support brackets.
Secure Fastening: Securely fasten cable cleats to mounting surfaces using the provided hardware, ensuring that cleats are firmly anchored and aligned with the cable route. Tighten fasteners to the manufacturer’s recommended torque specifications to prevent loosening or dislodgment during operation.
Alignment and Orientation: Position cable cleats to align with the direction of cable movement and tension, ensuring that cables are properly supported and restrained. Orient cleats to minimize bending or kinking of cables and to maintain the desired cable configuration.
Adjustment and Testing: After installing cleats, verify proper alignment, tension, and spacing of cables by visually inspecting the installation and conducting mechanical tests if necessary. Make any adjustments as needed to ensure that cables are securely fastened and adequately supported.
2. Inspection and Maintenance Guidelines
Regular Visual Inspections: Conduct visual inspections of cable cleats periodically to check for signs of damage, wear, or deterioration. Inspect cleats for cracks, corrosion, loose fasteners, or deformation that may compromise their integrity or effectiveness.
Functional Testing: Perform functional tests on cable cleats to verify their performance under load conditions. Apply mechanical forces or simulate fault conditions to assess the strength and stability of cleats and their ability to restrain cables effectively.
Environmental Monitoring: Monitor environmental conditions such as temperature, humidity, and exposure to corrosive substances to assess the potential impact on cable cleats. Take appropriate measures to protect cleats from environmental hazards or degradation, such as applying protective coatings or using corrosion-resistant materials.
Cleaning and Maintenance: Clean cable cleats regularly to remove dirt, debris, or contaminants that could impair their performance or cause damage to cables. Use mild cleaning agents and non-abrasive tools to avoid scratching or damaging cleats during cleaning.
Documentation and Record-Keeping: Maintain detailed records of cable cleat installations, inspections, and maintenance activities, including dates, findings, and any corrective actions taken. Keep manufacturer documentation, test reports, and compliance certificates for reference and documentation purposes.
Conclusion
Cable cleats are essential components of cable management systems, providing critical support and protection for electrical cables in diverse applications such as industrial settings, power distribution networks, construction sites, and offshore environments. By preventing cable movement, minimizing the risk of mechanical damage, and enhancing cable safety, cleats contribute to the integrity and longevity of electrical installations, reducing the potential for downtime, accidents, or costly repairs. Their role in ensuring compliance with international standards and regulatory requirements further underscores their significance in maintaining the safety and reliability of electrical systems.
Looking ahead, advancements in cable cleat technology are expected to focus on enhancing performance, sustainability, and integration with smart monitoring systems. Innovations in materials, design, and manufacturing processes will lead to the development of cleats that offer improved mechanical strength, fire resistance, and environmental durability, ensuring optimal performance in a wide range of applications. Additionally, there is a growing emphasis on sustainability and eco-friendliness, driving the adoption of cleats made from recycled materials or renewable sources, as well as designs that minimize material usage and waste.
Furthermore, the integration of cable cleats with smart monitoring and diagnostic systems will enable real-time monitoring of cable conditions, allowing for proactive maintenance and early detection of potential issues. Cleats equipped with sensors or RFID tags will provide valuable data on cable health, temperature, and stress levels, enabling predictive maintenance strategies and optimizing the reliability and efficiency of electrical systems.
In conclusion, cable cleats will continue to play a vital role in ensuring the safety, reliability, and efficiency of electrical installations, with ongoing advancements driving improvements in performance, sustainability, and monitoring capabilities. By staying abreast of emerging technologies and best practices in cable cleat design and installation, stakeholders can leverage these advancements to enhance the resilience and effectiveness of their electrical infrastructure in the years to come.
