2X Heat Shrink Tubing – SHAOXING DINGDONG ELECTRICAL CO., LTD.

Description

2X Heat Shrink Tubing Features

1. High insulation: 2X heat shrink tubing provides high insulation and protection to electrical wires and cables, reducing the risk of power interference or malfunction.

2. Durable: With an extra shrinkage factor, 2X heat shrink tubing provides an extra layer of protection that can help mitigate the risk of external damage, abrasion, and general wear and tear.

3. Flexibility: 2X tubing retains a certain degree of flexibility even after shrinking, making it well-suited to certain applications such as wire bending or positions where movement is required.

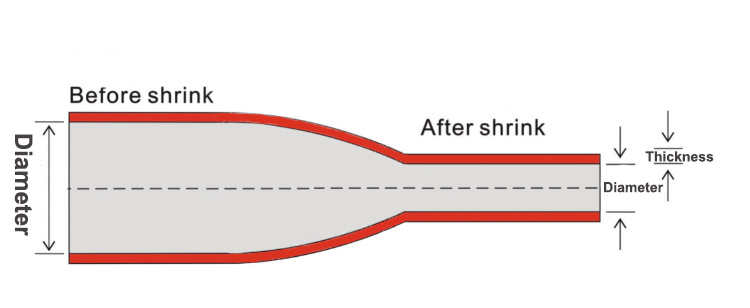

2X Heat Shrink Tubing Drawing

2X Heat Shrink Tubing Specification

Size		As supplied	After recovery		Standard package
Inch	mm	Internal Diameter mm	Internal Diameter Max mm	Wall Thickness Nom mm	Spoollengthm/Spool
3/64	0.8	1.1±0.2	0.5	0.22	200
1/16	1	1.5±0.2	0.65	0.28	200
1/16	1.5	2±0.2	0.85	0.32	200
3/32	2	2.5±0.2	1	0.35	200
3/32	2.5	3±0.2	1.3	0.38	200
1/8	3	3.5±0.2	1.5	0.4	200
	3.5	4±0.2	1.8	0.42	200
	4	4.5±0.2	2	0.45	200
3/16	4.5	5±0.2	2.3	0.5	200
3/16	5	5.5±0.2	2.5	0.55	100
1/4	6	6.5±0.2	3	0.55	100
5/16	7	7.5±0.3	3.5	0.55	100
5/16	8	8.5±0.3	4	0.6	100
3/8	9	9.5±0.3	4.5	0.6	100
	10	10.5±0.3	5	0.6	100
	11	11.5±0.3	5.5	0.6	100
1/2	12	12.5±0.3	6	0.6	100
	13	13.5±0.3	6.5	0.65	100
	14	14.5±0.3	7	0.65	100
5/8	15	15.5±0.4	7.5	0.7	100
	16	16.5±0.4	8	0.7	100
	17	17.5±0.4	8.5	0.7	100
3/4	18	19±0.5	9	0.8	100
	20	21±0.5	10	0.8	100
	22	23±0.5	11	0.8	100
1	25	26±0.5	12.5	0.9	50
1	28	29±0.5	14	0.9	50
1-1/4	30	31.5±1	15	0.95	50
1-1/4	35	36.5±1	17.5	1	50
1-1/2	40	41.5±1	20	1	50
1-1/2	45	46.5±1	22.5	1	25
2	50	≥50	25	1	25
	60	≥60	31	1.3	25
	70	≥70	36	1.3	25
3	80	≥80	41	1.46	25
3	90	≥90	46	1.46	25
4	100	≥100	51	1.46	25
5	120	≥120	61	1.56	25
6	150	≥150	76	1.56	25
7	180	≥180	91	1.56	25
