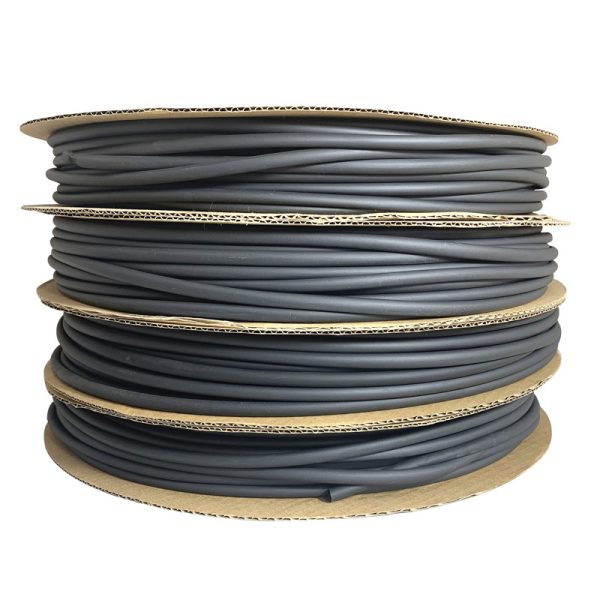

3X Heat Shrink Tubing

3X heat shrink tubing is a type of plastic tubing that shrinks to three times its original size when heat is applied. It is used in electrical applications to insulate and protect wires and cables from damage, moisture, and other environmental factors. The benefits of 3X heat shrink tubing make it a great choice for electrical insulation and protection in harsh and demanding environments.

Description

3X Heat Shrink Tubing Features

1. Superior insulation: 3X heat shrink tubing offers superior insulation and protection to electrical wiring, compared to standard tubing.

2. Extra durability: With an additional shrinkage factor, 3X tubing offers an extra durable layer of protection for wiring and cables, which is particularly useful in harsh environments.

3. Extra flexibility: 3X tubing retains a certain degree of flexibility even after shrinking, making it suitable for a wide range of applications, including in areas where wire bending or movement is required.

4. Chemical resistance: 3X tubing is generally resistant to oils, acids, and other chemicals, which makes it ideal for use in a wide range of industrial applications.



3X Heat Shrink Tubing Drawing



3X Heat Shrink Tubing Specification

Size As supplied After recovery Standard package
Inch mm Internal Diameter mm Internal Diameter Max mm Wall Thickness Nom mm Spoollengthm/Spool
1/16 1.5 1.5 0.5 0.45 200
1/8 3 3 1 0.55 200
3/16 4.5 4.5 1 0.6 100
1/4 6 6 2 0.65 100
3/8 9 9 3 0.75 50
1/2 12 12 4 0.75 50
5/8 15 15 5 0.8 50
3/4 18 18 6 0.85 50
1 24 24 8 1 25
1-1/4 30 30 10 1.15 1.22
1-1/2 39 39 13 1.5 1.22
2 50 50 16 2.5 1
60 60 20 2.6 1
70 70 23 2.6 1
3 80 80 26 2.6 1
90 90 30 2.6 1
4 100 100 33 2.6 1
