Description
Stainless Steel Single Cable Cleat Features
1. High strength: Stainless steel cable cleats are made from high-strength metal that provides excellent load-carrying capacity, making them ideal for applications that require heavy-duty cable management.
2. Corrosion resistance: Stainless steel is highly resistant to corrosion, even in harsh environments such as offshore installations or industrial settings. This makes stainless steel single cable cleats a reliable solution for cable management in a variety of applications.
3. Easy installation: Stainless steel single cable cleats are designed for easy installation, with pre-drilled holes and slots that make it easy to attach them to mounting surfaces.
4. Versatile: These cable cleats are suitable for use with a wide range of cable sizes and types, making them a versatile solution for cable management in various applications.
5. Compliance: Stainless steel single cable cleats are often designed to comply with industry standards and regulations, such as IEC 61914, ensuring that they provide a safe and reliable solution for cable management.
Overall, stainless steel single cable cleats offer a combination of strength, corrosion resistance, and compliance that make them an effective solution for cable management in a range of heavy-duty applications.

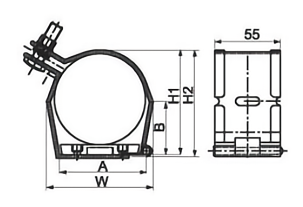

Stainless Steel Single Cable Cleat Drawing
Stainless Steel Single Cable Cleat Specification
| Series | Part Number | Suitable Cable Dia | Dimension(mm) | |
| (mm) | H | W | ||
| STCC-S Single |
2832 | 28 – 32 | 45 | 46 |
| 3034 | 30 – 34 | 46 | 47 | |
| 3236 | 32 – 36 | 48 | 47 | |
| 3438 | 34 – 38 | 50 | 49 | |
| 3640 | 36 – 40 | 52 | 51 | |
| 3842 | 38 – 42 | 54 | 53 | |
| 4044 | 40 – 44 | 56 | 58 | |
| 4246 | 42 – 46 | 58 | 59 | |
| 4448 | 44 – 48 | 60 | 60 | |
| 4650 | 46 – 50 | 62 | 61 | |
| 4852 | 48 – 52 | 64 | 63 | |
| 5054 | 50 – 54 | 66 | 66 | |
| 5256 | 52 – 56 | 67 | 68 | |
| 5458 | 54 – 58 | 70 | 70 | |
| 5660 | 56 – 60 | 72 | 72 | |
| 5862 | 58 – 62 | 74 | 74 | |
| 6064 | 60 – 64 | 76 | 76 | |
| 6266 | 62 – 66 | 78 | 78 | |
| 6468 | 64 -68 | 80 | 80 | |
| 6670 | 66- 70 | 82 | 82 | |
| 6872 | 68 -72 | 84 | 84 | |
| 7074 | 70 -74 | 85 | 86 | |
| 7276 | 72- 76 | 88 | 88 | |
| 7478 | 74 – 78 | 90 | 90 | |
| 7680 | 76 – 80 | 92 | 92 | |
| 7882 | 78 – 82 | 94 | 94 | |
| 8084 | 80 – 84 | 96 | 96 | |
| 8286 | 82 – 86 | 98 | 99 | |
| 8488 | 84 – 88 | 100 | 101 | |
| 8690 | 86 – 90 | 102 | 103 | |
| 8892 | 88 – 92 | 104 | 105 | |
| 9094 | 90 – 94 | 106 | 107 | |
| 9296 | 92 – 96 | 108 | 109 | |
| 94106 | 94 – 106 | 118 | 119 | |
| 100112 | 100 – 112 | 124 | 125 | |
| 106118 | 106 – 118 | 130 | 132 | |
| 112124 | 112 – 124 | 136 | 138 | |
| 118130 | 118 – 130 | 141 | 144 | |
| 127139 | 127 – 139 | 151 | 153 | |
| 132144 | 132 – 144 | 156 | 158 | |
| 138155 | 138 – 155 | 162 | 165 | |
